MIGRATE tutorial

Peter Beerli, Florida State University, July 2017

This tutorial has three sections:

  1. Short overview of the program
  2. How do we specify models
  3. Run a model selection exercise

Download the necessary files from here and unpack the tutorial_material.zip file, you have a directory migrate_tutorial and then copy the directory to your homedirectory on the cluster

Or you can use wget to download the package directly to your homedirectory on the cluster using this command:

wget http://www.peterbeerli.com/workshops/mbl/2017/tutorial_material.zip
unzip tutorial_material.zip
cd migrate_tutorial

Overview of the program

[first 30 minutes] migrate is a Bayesian population genetics inference program that is based on the structured coalescence. It uses DNA/RNA sequence data or microsatellite data. It can run on computer clusters (using parallel software tools based on the MPI standard). It is distributed as opensource (MIT license) from Migrate’s main website .

migrate can estimate parameters, such as populations sizes, immigration rates, and divergence times of fairly complex models. Originally, it was a pure population genetics programs, but with the introduction of divergence it can handle closely related species, admixed populations inlcuding potential hybrids, as long as your data include multiple individuals of the same group (this tutorial will introduce you to these models).

Efficient running on your system

migrate is distributed in source code and binaries for Mac and Windows computers. To run migrate efficiently on linux clusters compile it yourself using the MPI libraries openmpi or mvapich2. The Windows binary can run on Windows 7-10, although it may not be the most efficient way to run the program. If you have multiple loci and a computer with multiple cores (>4) use the parallel version. In the course we will use the version on the MBL system, this will be slower than your own laptop/desktop.

Menu and starting the program

migrate uses a menu to operate, the menu can save all options into a file which is called by default parmfile. The parmfile is a textfile that can be edited with a text editor, all lines starting with a # are comments and try to explain the options. You can write your own comments into the parmfile, but these will be overwritten when saved again through the menu. Starting the program can be done like this

migrate-n
migrate-n parmfile
migrate-n parmfile -nomenu
migrate-n -version
migrate-n -help

If the program is started without the -nomenu option it displays the main menu

 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
 +                                                                +
 +   POPULATION SIZE, MIGRATION, DIVERGENCE, ASSIGNMENT, HISTORY  +
 +   Bayesian inference using the structured coalescent           +
 +                                                                +
 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
  Using Intel AVX (Advanced Vector Extensions)
  Compiled for a SYMMETRIC multiprocessors (GrandCentral)
  PDF output enabled [Letter-size]
  Version 4.3.0   [May-20-2017]
  Program started at   Sun Jul 23 14:26:46 2017


  =============================================================
  MAIN MENU
  =============================================================

  D       Data type currently set to: DNA sequence model
  I       Input/Output formats and Event reporting
  P       Parameters  [start, migration model]
  S       Search strategy
  W       Write a parmfile
  Q       Quit the program


  To change the settings type the letter for the menu to change
  Start the program with typing Yes or Y
  ===>

Each submenu will handle options concerning Data, Run parameters, and Population model among other things.

Running

The MPI version is printing out less information than the single computer version, here an example of a log while running:

23:38:13   Burn-in of 200000 steps (Locus: 1/2, Replicate: 1/5)
23:38:15   Burn-in complete  in 22 seconds
23:39:00   Sampling of 100000 steps (Locus: 1/2, Replicate: 1/5)
23:39:15   Sampling complete  in 181 seconds
23:39:33   Sampling: prognosed end of run is 23:55 July 08 2016 [0.077777 done])
           Parameter     Acceptance Current      PropWindow AutoCorr ESS
           ------------  ---------- ------------ ---------- -------- --------
           Theta_1           0.085       0.00008      0.016    0.520   211.18
           Theta_2           0.110       0.00211      0.024    0.515   214.11
           M_2->1            0.759     982.58556     85.061    0.956    15.08
           Genealogies       0.100   -3210.29272      ---      0.781    82.36

Output

The output will be printed into two files that are called by default outfile and outfile.pdf (the name can be changed through the menu). There is a example outfile.pdf here.

How do we specify models

[about 15 minutes] migrate uses an adjacancy matrix to define the interactions among populations.

Defaults

The defaults in migrate are to estimate all population sizes \(\Theta\) and all immigration rates \(M\) independently.

For example a 3-population model where all populations A, B, and C exchange migrants at individual rates can be specified like this:

A B C
A x x x
B x x x
C x x x

Of course, this is not all that informative, but it is the default.

Specifying models without divergence

There are many ways to specify different structured models, migrate has a set of options to help with that:

More examples:

A B C
A x 0 x
B x x 0
C 0 x x

A B C
A e b a
B a e b
C 0 a x

REMINDER: the populations specified on the row of the adjanceny matrix are the receiving populations, populations on the columns are the sending populations, thus in the circular unidrectional stepping stone example above, population A receives migrants from population C and we estimate the parameter \(M_{C\rightarrow A}\), population B receives migrants from population A and we estimate \(M_{A\rightarrow B}\) etc.

Answer these questions

Click on the question to reveal the answer, but write down the answer before you peek :-).

1. specify the matrix for a 2-population system with unidrectional migration from 2 \(\rightarrow\) 1
custom-migration={** 0*}
2. specify a migration matrix for a 5-population system where population 1 and 5 are on a mainland, population 2 is and island close to 1, population 4 is close to 5, and population 3 is far out in the sea but closest to 2. ‘Close’ means reachable by rafting, and once on an island it will be difficult to get off again.
custom-migration={*000* **000 0**00 000** *000*}

Specifying models with divergence

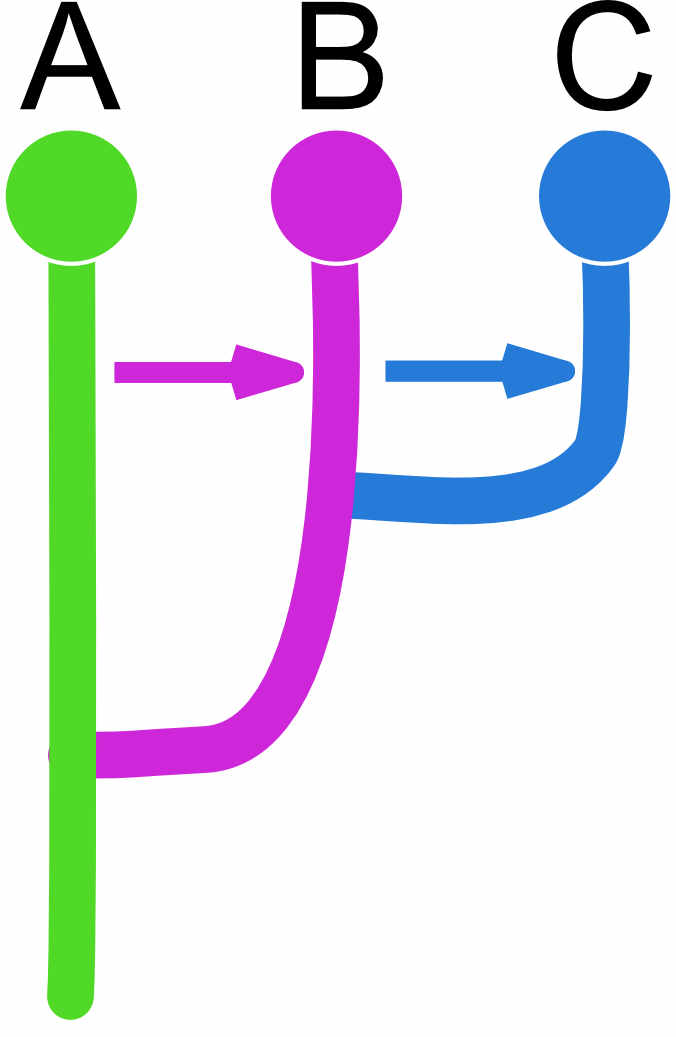

For the divergence specification we also use the adjancency matrix. For example if we have a model where the populations do not exchange migrants we could specify the matrix like this

A B C
A x 0 0
B d x 0
C 0 d x

A B C
A x 0 0
B D x 0
C 0 D x

Migration is problematic and models with immigration and divergence may need additional ancestral populations to allow the estimation to be identifiable. Here an example that needs ancestral population to get better estimates of divergence and migration.

A B C D
A x 0 0 0
B 0 x x t
C 0 x x t
D d 0 0 x

migrate has a menu to enter this adjancency matrix, but given the many options it may seem easier for complex scenarios to edit the parameter file (it is a text file) directly. the option is named custom-migration and contains the adjancency matrix, for example the example from above looks like this

custom-migration={ x000 0xxt 0xxt d00x}

If a diagonal element is set to zero the program will crash! There are also models that will not work well or fail. All models essentially need to be able to end in one common ancestor, for example we may be tempted to code an admixture example like this

A B C
A x 0 0
B d x d
C 0 0 x

but this will not work well because we force to have two roots, and this can lead to failures during the run, one can code this better as this (a) or this (b)

(a) A B C
A x 0 0
B d x d
C d 0 x

More complicated than (a) is this (b) model that forces a sequence of divergences. Both models should deliver similar values so, although (b) will estimate a population size for population D.

(b) A B C D
A x 0 0 0
B d x d 0
C 0 0 x d
D d 0 0 x

Answer these questions

1. specify the matrix for two current populations A, B that share a common ancestor C
custom-migration={*0d 0*d 00*} or custom-migration={*0t 0*t 00*}
2. If the first questions is answered using ’d' what does that mean for the divergence times?
Specifying ’d' instead of ’t' allows the two current populations to have splits from the ancestor at different times.

Run a model selection exercise

[about 1.5 hours] We use a real dataset of the zika virus, the data was gathered from the VIPR database. The localities include Africa, China, Brazil, Panama, Guatemala, Mexico, and Puerto Rico. There are only few sequences in some of the populations so they will be pooled in our analysis. To simplify we pool Panama, Guatemala, Mexico, and Puerto Rico into a population labeled ‘Mexico’. The general consensus about the spread of zika is from Africa to Asia to the Americas. They mainly used incidence data to come to that conclusion. Here we use complete genomic data of the viruses to select among models that represent alternative hypotheses. Infographic: The Spread Of The Zika Virus | Statista

  1. [to the east and north] Zika spread from Africa \(\rightarrow\) Asia \(\rightarrow\) Brazil \(\rightarrow\) Mexico
  2. [to the east and north with migration] Zika spread from Africa \(\rightarrow\) Asia \(\rightarrow\) Brazil \(\rightarrow\) Mexico with recurrent migration from the source after the population split
  3. [panmictic] The spread of Zika so fast and ubiquitous that we can treat Zika as a single panmictic population
  4. [to the west] Zika spread from Africa \(\rightarrow\) Asia and independently from Africa \(\rightarrow\) Brazil \(\rightarrow\) Mexico
  5. [migration]Zika follows an n-island model
  6. [to the east and splam]Zika spread from Africa \(\rightarrow\) Asia \(\rightarrow\) Americas (and we treat all new world locations as a panmictic unit.
  7. [twoways] The population in the Americas is a ‘hybrid’ from Africa and Asia.
  8. Your own model

For each of the models you will need to edit a parmfile. I suggest that you follow the naming schemes in this tutorial.

There is a parmfile.template that specifies model 1 [to the east and north]. Use this template to form all the other models, for each these new models you will need to do the following steps:

  1. copy the parmfile.template to a new parmfile
  2. check and fix the population relabel option
  3. and/or check the custom-migration option

Model 1 to the east and north

cp parmfile.template parmfile_eastnorth
perl -p -i -e 's/template/eastnorth/g;' parmfile_eastnorth
<edit the parmfile_eastnorth>  ## see below ##
migrate-n parmfile_eastnorth  -nomenu

or (NOT SUGGESTED!!!!!) edit the file parmfile_eastnorth by hand, you will need to do three edits: (1) search for the terms outfile=outfile_template and replace it with outfile=outfile_eastnorth; (2) search for the terms pdf-outfile=outfile_template.pdf and replace it with pdf-outfile=outfile_eastnorth.pdf; (3) search for the terms bayes-allfile=YES:1:bayesallfile_template and replace it with bayes-allfile=YES:1:bayesallfile_eastnorth; save the file and then run the program

For all other models, if you use the parmfile_template change its name to a model then also edit the options as shown above. If you follow the instructions then all files will be set up correctly, if you insist on doing this by hand, you almost ceratinly will overwrite things and also use incorrect options.

Model 2 to the east and north with migration

cp parmfile.template parmfile_eastnorthmig
perl -p -i -e 's/template/eastnorthmig/g;' parmfile_eastnorthmig
<edit the parmfile_eastnorthmig>
migrate-n parmfile_eastnorthmig  -nomenu

the parmfile needs to have a different custom-migration setting, search for the option, the current setting that does not include migration, edit it accordingly (using the example in the beginning of the tutorial, but recognize that have a total of 4 population now, not three.

Once you have edited your copy compare with this custom-migration={*000 D*00 0D*0 00D*}

Model 3 panmictic

cp parmfile.template parmfile_panmictic
perl -p -i -e 's/template/panmictic/g;' parmfile_panmictic
<edit the parmfile_panmictic>
migrate-n parmfile_panmictic  -nomenu

In your editor search for the option population-relabel it should look like this

# MBL tutorial dataset zika
# in the data file the order of the population is this:
# Africa
# Asia
# Brazil
# Mexico
# Puerto Rico
#
#    population-relabel={assignment for each location in the infile}
#    example is population-relabel={1 2 2}
#
population-relabel={1, 2, 3, 4, 4}
#

For model 3 you need to reset to model to a single population, edit the option

Once you have edited your copy compare with this population-relabel={1, 1, 1, 1, 1}

Model 4 to the west

cp parmfile.template parmfile_west
perl -p -i -e 's/template/west/g;' parmfile_west
<edit the parmfile_west>
migrate-n parmfile_west  -nomenu

the parmfile needs to have a different custom-migration setting, adjust it so so that we have population splits like this Africa \(\rightarrow\) Asia, Africa \(\rightarrow\) Brazil \(\rightarrow\) ‘Mexico’.

Once you have edited your copy compare with this custom-migration={*000 d*00 d0*0 00d*}

Model 5 migration only (and not divergence)

cp parmfile.template parmfile_migration
perl -p -i -e 's/template/migration/g;' parmfile_migration
<edit the parmfile_migration>
migrate-n parmfile_migration  -nomenu

the parmfile needs to have a different custom-migration setting, adjust to the n-island model with migration among all [!] populations

Once you edited your copy compare with this custom-migration={**** **** **** ****}

Model 6 to the east and splam

cp parmfile.template parmfile_eastsplam
perl -p -i -e 's/template/eastsplam/g;' parmfile_eastsplam
<edit the parmfile_eastsplam>
migrate-n parmfile_eastsplam  -nomenu

the parmfile needs to have a different custom-migration setting and a change of the population-relabel option. Change it so that we have Africa \(\rightarrow\) Asia \(\rightarrow\) Americas the custom migration matrix should be a 3x3 matrix; in addition you will need to change the population-relabel option to pool Brazil and Mexico and Puerto Rico.

Once you edited your copy compare with this population-relabel={1 2 3 3 3}
#… many options not shown here …
custom-migration={*00 d*0 0d*}

Model 7 to the west, to the east and splam

cp parmfile.template parmfile_twoways
perl -p -i -e 's/template/twoways/g;' parmfile_twoways
<edit the parmfile_twoways>
migrate-n parmfile_twoways  -nomenu

the parmfile needs to have a different custom-migration setting and a change of the population-relabel option. Change it so that we have Africa \(\rightarrow\) Asia \(\rightarrow\) Americas and Africa \(\rightarrow\) Americas; the custom migration matrix should be a 3x3 matrix; in addition you will need to change the population-relabel option to pool Brazil and Mexico and Puerto Rico.

Once you edited your copy compare with this population-relabel={1 2 3 3 3}
#… many options not shown here …
custom-migration={*00 d*0 dd*}

Model 8 pick your own model

cp parmfile.template parmfile_own
perl -p -i -e 's/template/own/g;' parmfile_own
<edit the parmfile_own>
migrate-n parmfile_own  -nomenu

Design your own model!

Reporting

You have run several models and since we ran them not really long enough we wnat to see whether an average estimate of all students may give som intuition what is going on with the Zika virus. Each of the outfiles has a table of the marginal likelihoods, report the value for your output files (you can report these before you have run all of them) Report the number circled in RED. We will run an excel sheet to look at the model probabilities and marginal likelihoods reported by the class. [last 30 minutes]

I have added a script that allows you to generate a table of the marginal likelihoods, the Bayes factors compared to the best model, and the model probabilities (probability weight). The script uses grep and a small python script that is doing the calculations. It will generate a table by extracting the marginal likelihoods from all outfiles in the directory, call the script like this

./modelprobtable

or you can get the same result with

grep "All   " outfile* | sort -n -k 4,4 | bf.py

Spoiler ALERT, if you click me before you have done the tutorial you will see the order of the models and thus loose all the excitment which model wins

Model                       Log(mL)   LBF     Model-probability
---------------------------------------------------------------
1:outfile_panmictic:            -26722.61  -751.10       0.0000
2:outfile_migration:            -26581.65  -610.14       0.0000
3:outfile_eastnorthmig:         -26475.24  -503.73       0.0000
4:outfile_west:                 -26221.24  -249.73       0.0000
5:outfile_eastnorth:            -26038.31   -66.80       0.0000
6:outfile_eastsplam:            -25971.51     0.00       1.0000
